Power job-site air tools with the FS-Curtis FAC-23B, delivering 80 cfm at 7 bar from a compact Kubota diesel-powered box-type compressor.
1 in stock — contact QCAS to confirm remaining availability

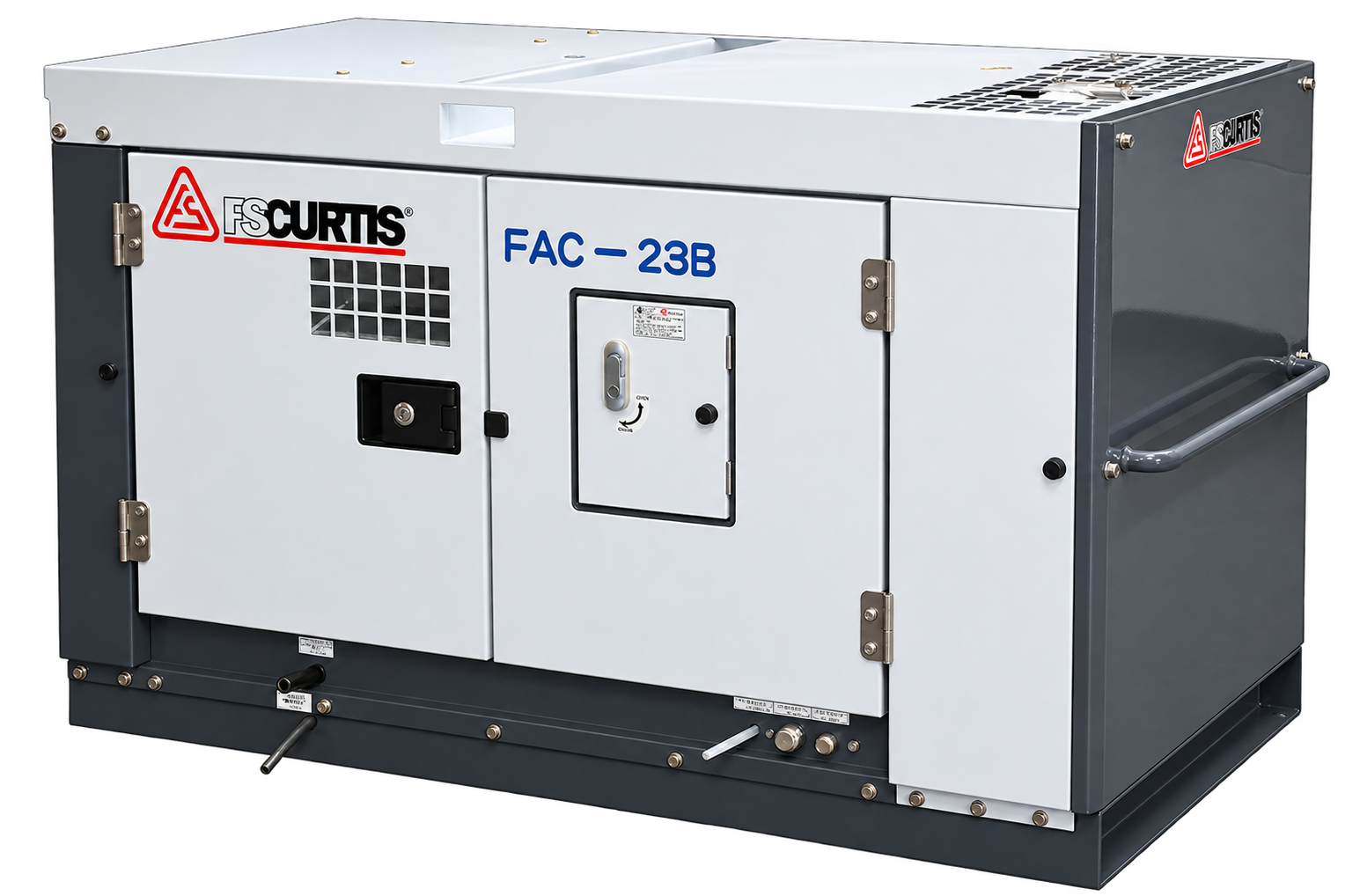

The FS-Curtis FAC-23B is a diesel-powered, box-type rotary screw compressor for service vehicles, job sites and stationary installations where mains electricity is not practical.
It supplies 2.3 m³/min (80 cfm) at a rated 7 bar, driven by a Kubota D902-K3A engine. The lockable steel cabinet provides a compact package for installations where space, mounting and access need careful planning.
The FAC-23B does not include an aftercooler; it differs from the FAC-23BC and trailer versions. Contact QCAS to assess your tools, mounting, ventilation and air-treatment requirements, and to confirm included accessories, delivery and applicable warranty.
Product code: FS FAC-23B
Engine: Kubota D902-K3A, three cylinders, 0.898-litre displacement
Fuel tank: 25 litres
Fuel consumption: 1.9 L/h at no load; 5.1 L/h at full load
Air outlets: two 3/4-inch BSP outlets
Aftercooler: not fitted to the FAC-23B; FAC-23BC is the aftercooled version
Dimensions and wet weight refer to the box-type model, not the trailer version. Follow the model operating manual for installation, ventilation and servicing.
Sale price: $12,999 including GST. One unit is currently in stock. Contact QCAS to confirm remaining availability, offer conditions, delivery charges, mounting equipment, included accessories and applicable warranty before purchase.
The box-type FAC-23B is rated at 2.3 m³/min (80 cfm) free air delivery and 7 bar (102 psi) operating pressure. Its 9.3 bar maximum pressure is a separate figure. Ask QCAS to check your tools and combined air demand.
The FAC-23B is driven by a Kubota D902-K3A diesel engine and uses a 12 V starting battery. It does not use a mains-powered compressor motor. Installation still needs suitable mounting, ventilation and safe exhaust arrangements.
The FAC-23B is the standard box-type model without an aftercooler. FAC-23BC identifies the aftercooled version, and trailer variants have different dimensions and weights. Confirm mounting equipment and accessories included in this QCAS offer before purchase.
The manufacturer describes its box-type range for confined installations such as service trucks and stationary applications. QCAS can assess mounting, weight, access, cooling ventilation, exhaust and air-treatment needs for your installation.
